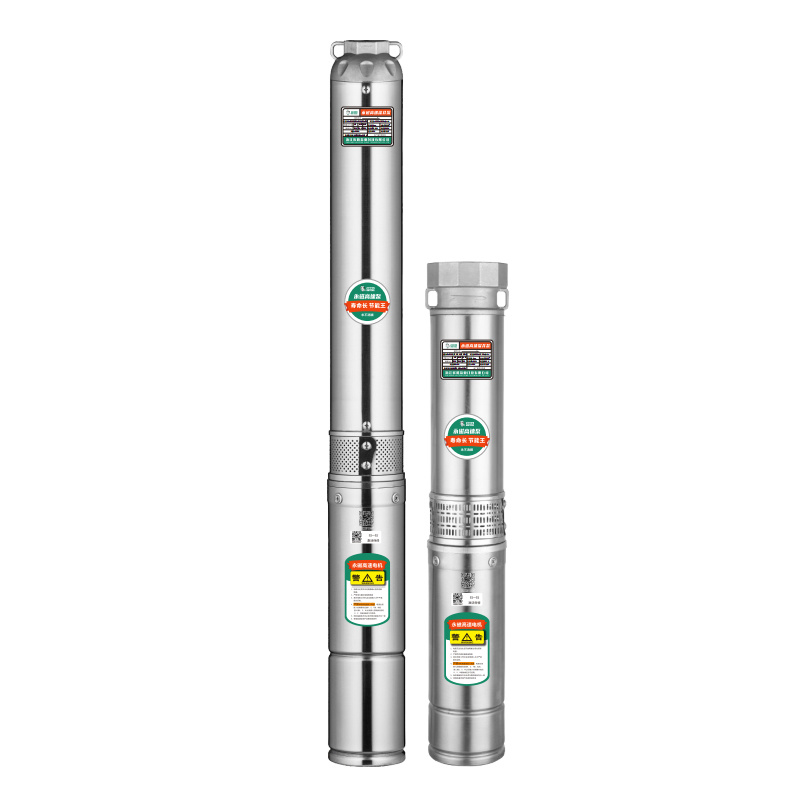

永磁直流高速深井泵(高效节能)
Permanent magnet high-speed deep well pump
IE-100QJ系列特点:
1、缺水缺相自动保护整机，电机永不烧机;
2、高效节能35%以上;
3、整机重量下井方便
4、减去安装成本，减去维修成本;
5、使用寿命超长。
lE-100QJ series features:
1.Waterand phase shortage automatic protectionfor the entire machine,and themotor will never burn out
2.More than 35% efficient and energy-saving
3.Underthe overall weight and convenient
4.Lessinstallation costs,less maintenance costs
5.Long service life

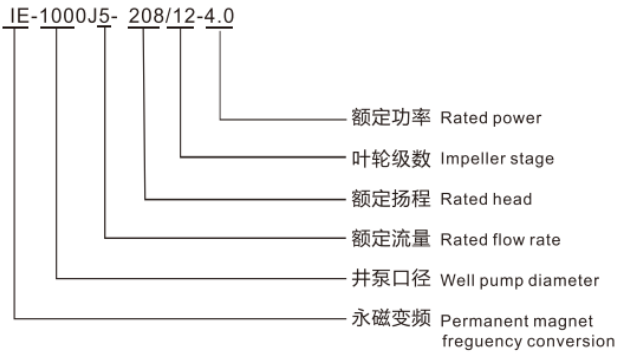

型号说明 Model Description

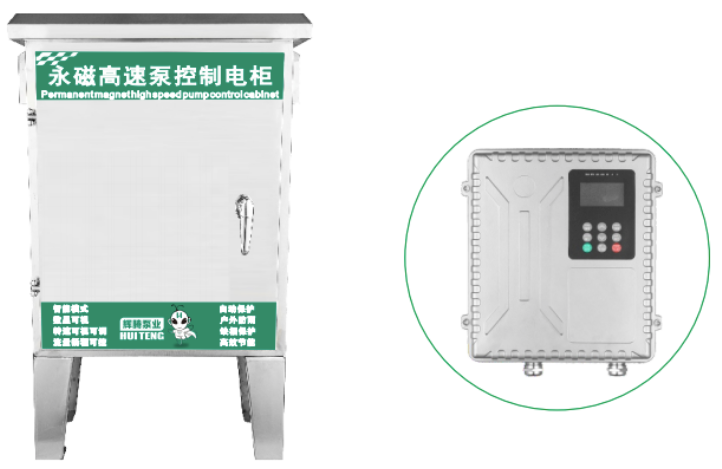

100型IE永磁高速变频节能系列(外置控制器)
|
序号 |
型号 |
功率 |
电流 |
电压 |
转速4500r/min |
转速5000r/min |
||||
|
3T系列(外置控制器) 3T Series (external controller) 出水口 1" |
2T |
3T |
4T |
2T |
3T |
4T |
||||
|
1 |
IE-100QJ3-170/10-2.2 |
2.2 |
4.5 |
380 |
188 |
150 |
100 |
213 |
170 |
113 |
|
2 |
IE-100QJ3-221/13-3 |
3 |
6.2 |
244 |
195 |
130 |
276 |
221 |
147 |
|
|
3 |
IE-100QJ3-306/18-4 |
4 |
8.2 |
338 |
270 |
180 |
383 |
306 |
204 |
|
|
4 |
IE-100QJ3-374/22-5.5 |
5.5 |
12 |
413 |
330 |
220 |
468 |
374 |
249 |
|
|
5 |
IE-100QJ3-476/28-7.5 |
7.5 |
15 |
525 |
420 |
280 |
595 |
476 |
317 |
|
|
6 |
IE-100QJ3-561/33-9.2 |
9.2 |
20.5 |
619 |
495 |
330 |
701 |
561 |
374 |
|
|
7 |
IE-100QJ3-629/37-11 |
11 |
23 |
694 |
555 |
370 |
786 |
629 |
419 |
|
|
8 |
IE-100QJ3-748/44-15 |
15 |
30 |
825 |
660 |
440 |
935 |
748 |
499 |
|
|
5T系列(外置控制器) 5T Series (external controller) 出水口 1.5" |
4T |
5T |
6T |
4T |
5T |
6T |
||||
|
1 |
IE-100QJ5-121/7-2.2 |
2.2 |
4.5 |
380 |
118 |
102 |
78 |
141 |
121 |
95 |
|
2 |
IE-100QJ5-163/10-3 |
3 |
6.2 |
169 |
145 |
112 |
191 |
163 |
125 |
|
|
3 |
IE-100QJ5-208/12-4 |
4 |
8.2 |
202 |
174 |
134 |
241 |
208 |
162 |
|
|
4 |
IE-100QJ5-277/16-5.5 |
5.5 |
12 |
270 |
232 |
178 |
322 |
277 |
216 |
|
|
5 |
IE-100QJ5-381/22-7.5 |
7.5 |
15 |
371 |
319 |
245 |
443 |
381 |
297 |
|
|
6 |
IE-100QJ5-484/28-9.2 |
9.2 |
20.5 |
472 |
406 |
312 |
563 |
484 |
378 |
|
|
7 |
IE-100QJ5-588/34-11 |
11 |
23 |
573 |
493 |
379 |
684 |
588 |
460 |
|
|
8 |
IE-100QJ5-675/39-15 |
15 |
30 |
658 |
566 |
435 |
785 |
675 |
527 |
|
|
10T系列(外置控制器) 10T Series (external controller) 出水口 2" |
8T |
10T |
12T |
8T |
10T |
12T |
||||
|
1 |
IE-100QJ10-68/4-2.2 |
2.2 |
4.5 |
380 |
63 |
52 |
42 |
80 |
68 |
55 |
|
2 |
IE-100QJ10-92/6-3 |
3 |
6.2 |
85 |
71 |
57 |
108 |
92 |
75 |
|
|
3 |
IE-100QJ10-116/8-4 |
4 |
8.2 |
108 |
89 |
71 |
136 |
116 |
94 |
|
|
4 |
IE-100QJ10-152/10-5.5 |
5.5 |
12 |
141 |
117 |
94 |
179 |
152 |
124 |
|
|
5 |
IE-100QJ10-215/13-7.5 |
7.5 |
15 |
199 |
165 |
132 |
253 |
215 |
175 |
|
|
6 |
IE-100QJ10-232/16-9.2 |
9.2 |
20.5 |
215 |
178 |
143 |
273 |
232 |
189 |
|
|
7 |
IE-100QJ10-270/18-11 |
11 |
23 |
250 |
208 |
166 |
318 |
270 |
220 |
|
|
8 |
IE-100QJ10-360/22-15 |
15 |
30 |
334 |
277 |
222 |
424 |
360 |
293 |
|
|
9 |
IE-100QJ10-410/25-18.5 |
18.5 |
33.5 |
380 |
315 |
252 |
482 |
410 |
333 |
|
|
15T系列(外置控制器) 15T Series (external controller) 出水口 2" |
12T |
15T |
17T |
12T |
15T |
17T |
||||
|
1 |
IE-100QJ15-59/4-3 |
3 |
6.2 |
380 |
51 |
45 |
38 |
67 |
59 |
49 |
|
2 |
IE-100QJ15-89/6-4 |
4 |
8.2 |
78 |
68 |
57 |
101 |
89 |
74 |
|
|
3 |
IE-100QJ15-118/8-5.5 |
5.5 |
12 |
103 |
91 |
76 |
134 |
118 |
98 |
|
|
4 |
IE-100QJ15-160/10-7.5 |
7.5 |
15 |
139 |
123 |
103 |
181 |
160 |
133 |
|
|
5 |
IE-100QJ15-181/12-9.2 |
9.2 |
20.5 |
158 |
139 |
116 |
205 |
181 |
151 |
|
|
6 |
IE-100QJ15-202/14-11 |
11 |
23 |
176 |
155 |
129 |
229 |
202 |
168 |
|
|
7 |
IE-100QJ15-252/17-15 |
15 |
30 |
220 |
194 |
162 |
286 |
252 |
210 |
|
|
8 |
IE-100QJ15-295/20-18.5 |
18.5 |
33.5 |
257 |
227 |
189 |
334 |
295 |
246 |
|
|
20T系列(外置控制器) 20T Series (external controller) 出水口 2.5" |
18T |
20T |
22T |
18T |
20T |
22T |
||||
|
1 |
IE-100QJ20-40/4-3 |
3 |
6.2 |
380 |
35 |
32 |
27 |
43 |
40 |
33 |
|
2 |
IE-100QJ20-60/6-4 |
4 |
8.2 |
52 |
48 |
40 |
65 |
60 |
50 |
|
|
3 |
IE-100QJ20-88/8-5.5 |
5.5 |
12 |
78 |
70 |
55 |
96 |
88 |
69 |
|
|
4 |
IE-100QJ20-118/10-7.5 |
7.5 |
15 |
102 |
94 |
79 |
128 |
118 |
98 |
|
|
5 |
IE-100QJ20-125/12-9.2 |
9.2 |
20.5 |
108 |
100 |
83 |
135 |
125 |
104 |
|
|
6 |
IE-100QJ20-148/15-11 |
11 |
23 |
128 |
118 |
99 |
160 |
148 |
123 |
|
|
7 |
IE-100QJ20-182/19-15 |
15 |
30 |
157 |
146 |
121 |
197 |
182 |
152 |
|
