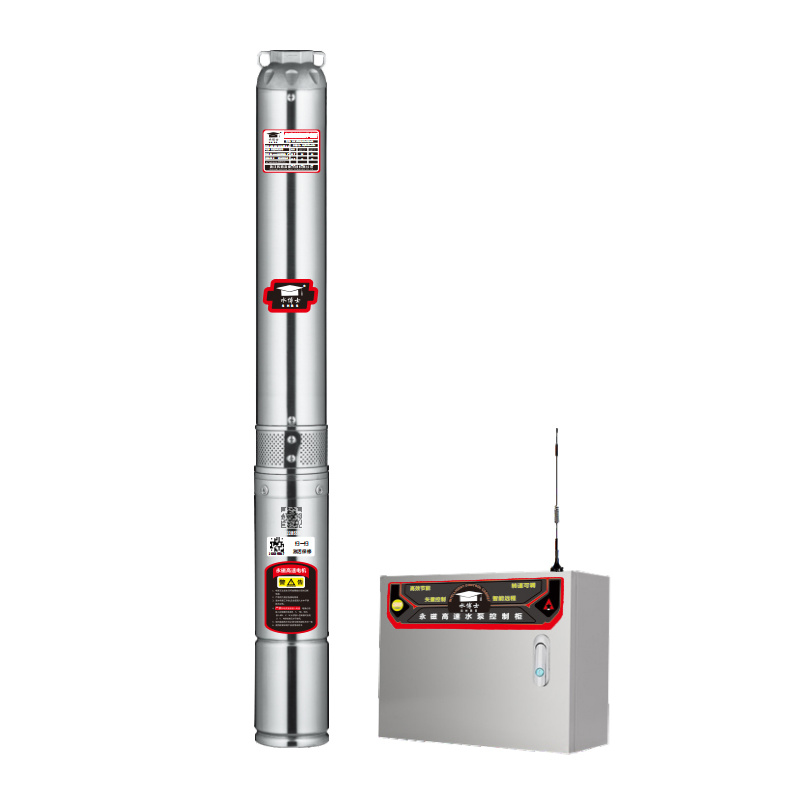

6000转高速深井泵(高效节能 )
Permanent magnet high-speed deep well pump
1、小巧轻便
2、高效节能
3、智能保护
4、内外兼修
5、宽电压运行
6、柔性启动
1.Compact and lightweight
2.Efficient and energy-saving
3.Intelligent protection
4. Both internal and external training
5.Wide voltage operation
6.Flexible start

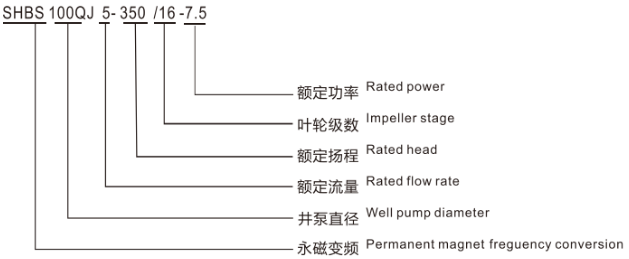

型号说明 Model Description
SHBS系列深井泵产品规格表
|
序号 |
型号 |
功率(KW) |
电流(A) |
电压(V) |
转速6000r/minFlow 流量 m³/h Head 扬程 m | 转速5700r/minFlow 流量 m³/h Head 扬程 m | ||||
|
5T系列(外置控制器) 5Tseries (external controller) 出水口径 1.5" |
4T |
5T |
6T |
4T |
5T |
6T |
||||
|
1 |
SHBS100QJ5-132/6-3.0 |
3 |
7 |
380 |
150 |
132 |
108 |
137 |
120 |
98 |
|
2 |
SHBS100QJ5-176/8-4 |
4 |
9 |
200 |
176 |
144 |
182 |
160 |
131 |
|
|
3 |
SHBS100QJ5-264/12-5.5 |
5.5 |
13.7 |
300 |
264 |
216 |
273 |
240 |
196 |
|
|
4 |
SHBS100QJ5-350/16-7.5 |
7.5 |
18.5 |
400 |
350 |
287 |
364 |
320 |
261 |
|
|
5 |
SHBS100QJ5-485/22-11 |
11 |
25.5 |
550 |
485 |
395 |
501 |
440 |
359 |
|
|
6 |
SHBS100QJ5-610/28-15 |
15 |
30 |
700 |
610 |
500 |
637 |
560 |
457 |
|
|
序号 |
型号 |
功率(KW) |
电流(A) |
电压(V) |
转速6000r/minFlow 流量 m³/h Head 扬程 m | 转速5700r/minFlow 流量 m³/h Head 扬程 m | ||||
|
10T系列(外置控制器) 10Tseries (external controller) 出水口径 2" |
8T |
10T |
12T |
8T |
10T |
12T |
||||
|
1 |
SHBS100QJ10-75/4-3 |
3 |
7 |
380 |
90 |
75 |
60 |
82 |
68 |
54 |
|
2 |
SHBS100QJ10-115/6-4 |
4 |
9 |
125 |
115 |
84 |
114 |
95 |
76 |
|
|
3 |
SHBS100QJ10-152/8-5.5 |
5.5 |
13.7 |
179 |
152 |
119 |
158 |
132 |
106 |
|
|
4 |
SHBS100QJ10-207/10-7.5 |
7.5 |
18.5 |
248 |
207 |
166 |
216 |
180 |
144 |
|
|
5 |
SHBS100QJ10-242/12-11 |
11 |
25.5 |
290 |
242 |
194 |
264 |
220 |
176 |
|
|
6 |
SHBS100QJ10-270/13-13 |
13 |
27 |
323 |
270 |
216 |
294 |
245 |
196 |
|
|
7 |
SHBS100QJ10-324/15-15 |
15 |
30 |
356 |
324 |
238 |
324 |
270 |
216 |
|
|
8 |
SHBS100QJ10-368/18-18.5 |
18.5 |
33.5 |
405 |
368 |
282 |
368 |
320 |
256 |
|
|
9 |
SHBS128-100QJ10-424/22-22 |
22 |
39 |
479 |
424 |
344 |
435 |
385 |
313 |
|
|
10 |
SHBS128-100QJ10-561/30-30 |
30 |
54 |
617 |
561 |
468 |
561 |
510 |
425 |
|
|
序号 |
型号 |
功率(KW) |
电流(A) |
电压(V) |
转速6000r/minFlow 流量 m³/h Head 扬程 m | 转速5700r/minFlow 流量 m³/h Head 扬程 m | ||||
|
15T系列(外置控制器) 15Tseries (external controller) 出水口径 2" |
12T |
15T |
17T |
12T |
15T |
17T |
||||
|
1 |
SHBS100QJ15-73/3-4 |
4 |
9 |
380 |
80 |
73 |
60 |
72 |
67 |
55 |
|
2 |
SHBS100QJ15-114/5-5.5 |
5.5 |
13.7 |
124 |
114 |
94 |
112 |
104 |
85 |
|
|
3 |
SHBS100QJ15-152/6-7.5 |
7.5 |
18.5 |
165 |
152 |
125 |
150 |
138 |
113 |
|
|
4 |
SHBS100QJ15-200/8-11 |
11 |
25.5 |
232 |
200 |
168 |
193 |
178 |
139 |
|
|
5 |
SHBS100QJ15-225/9-13 |
13 |
27 |
257 |
225 |
189 |
218 |
201 |
160 |
|
|
6 |
SHBS100QJ15-249/10-15 |
15 |
30 |
282 |
249 |
210 |
243 |
224 |
180 |
|
|
7 |
SHBS100QJ15-289/12-18.5 |
18.5 |
33.5 |
326 |
289 |
238 |
281 |
265 |
207 |
|
|
8 |
SHBS128-100QJ15-339/15-22 |
22 |
39 |
368 |
339 |
279 |
338 |
322 |
246 |
|
|
9 |
SHBS128-100QJ15-431/19-30 |
30 |
54 |
467 |
431 |
338 |
421 |
409 |
292 |
|
|
序号 |
型号 |
功率(KW) |
电流(A) |
电压(V) |
转速6000r/minFlow 流量 m³/h Head 扬程 m | 转速5700r/minFlow 流量 m³/h Head 扬程 m | ||||
|
20T系列(外置控制器) 20Tseries (external controller) 出水口径 2.5" |
18T |
20T |
22T |
18T |
20T |
22T |
||||
|
1 |
SHBS100QJ20-39/3-3 |
3 |
7 |
380 |
44 |
39 |
35 |
40 |
36 |
33 |
|
2 |
SHBS100QJ20-56/4-4 |
4 |
9 |
61 |
56 |
50 |
53 |
48 |
44 |
|
|
3 |
SHBS100QJ20-80/6-5.5 |
5.5 |
13.7 |
92 |
80 |
75 |
80 |
72 |
65 |
|
|
4 |
SHBS100QJ20-105/8-7.5 |
7.5 |
18.5 |
115 |
105 |
94 |
100 |
90 |
82 |
|
|
5 |
SHBS100QJ20-140/10-11 |
11 |
25.5 |
153 |
140 |
125 |
133 |
120 |
109 |
|
|
6 |
SHBS100QJ20-157/11-13 |
13 |
27 |
172 |
157 |
141 |
150 |
135 |
122 |
|
|
7 |
SHBS100QJ20-175/12-15 |
15 |
30 |
192 |
175 |
157 |
167 |
150 |
136 |
|
|
8 |
SHBS100QJ20-210/14-18.5 |
18.5 |
33.5 |
230 |
210 |
188 |
200 |
180 |
164 |
|
|
9 |
SHBS128-100QJ20-227/17-22 |
22 |
39 |
249 |
227 |
204 |
217 |
195 |
177 |
|
|
10 |
SHBS128-100QJ20-303/22-30 |
30 |
54 |
332 |
303 |
272 |
289 |
260 |
236 |
|
|
序号 |
型号 |
功率(KW) |
电流(A) |
电压(V) |
转速6000r/minFlow 流量 m³/h Head 扬程 m | 转速5700r/minFlow 流量 m³/h Head 扬程 m | ||||
|
30T系列(外置控制器) 30Tseries (external controller) 出水口径 3" |
28T |
30T |
32T |
28T |
30T |
32T |
||||
|
1 |
SHBS100QJ30-31/2-3 |
3 |
7 |
380 |
33 |
31 |
29 |
30 |
28 |
26 |
|
2 |
SHBS100QJ30-40/3-4 |
4 |
9 |
43 |
40 |
38 |
39 |
36 |
34 |
|
|
3 |
SHBS100QJ30-54/4-5.5 |
5.5 |
13.7 |
58 |
54 |
51 |
53 |
50 |
46 |
|
|
4 |
SHBS100QJ30-80/5-7.5 |
7.5 |
18.5 |
86 |
80 |
75 |
78 |
73 |
68 |
|
|
5 |
SHBS100QJ30-92/6-11 |
11 |
25.5 |
99 |
92 |
87 |
90 |
84 |
79 |
|
|
6 |
SHBS100QJ30-102/7-13 |
13 |
27 |
110 |
102 |
96 |
100 |
93 |
88 |
|
|
7 |
SHBS100QJ30-120/8-15 |
15 |
30 |
130 |
120 |
113 |
117 |
110 |
103 |
|
|
8 |
SHBS100QJ30-143/9-18.5 |
18.5 |
33.5 |
153 |
143 |
134 |
139 |
130 |
122 |
|
|
9 |
SHBS128-100QJ30-167/11-22 |
22 |
39 |
179 |
167 |
157 |
163 |
152 |
142 |
|
|
10 |
SHBS128-100QJ30-203/14-30 |
30 |
54 |
218 |
203 |
191 |
198 |
185 |
173 |
|
