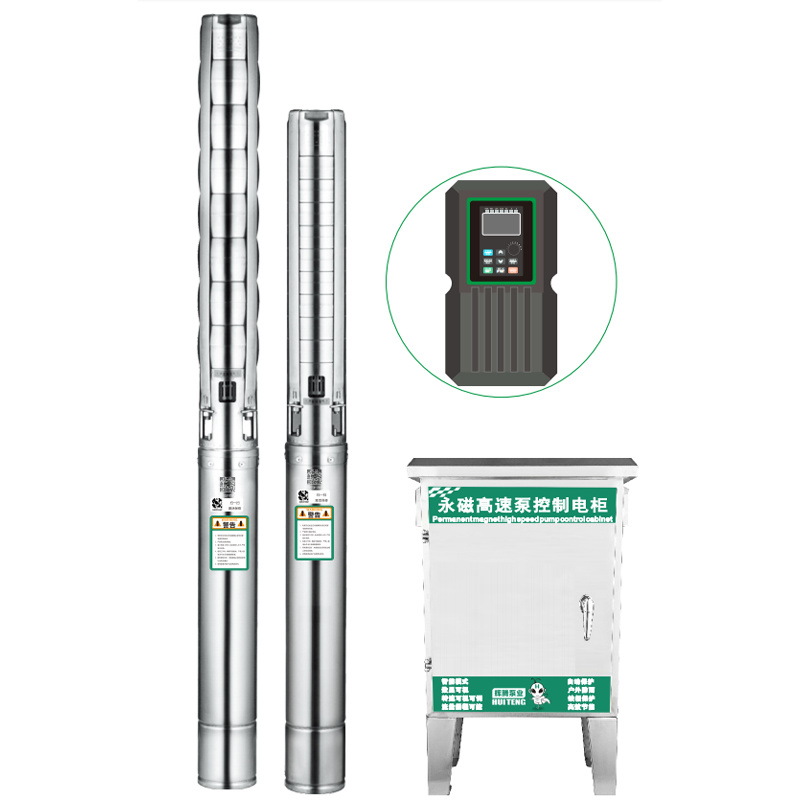

油浸/水浸屏蔽式潜水泵
Waterimmersed shielded submersible pump
潜水深度至300米 Diving depth up to 300 meters
10大特点
Ten Characteristics
1.泵体采用抗沙结构，叶轮耐磨性好
2.叶轮单级浮动，效率更高
3.304不锈钢电机轴，耐腐蚀性好
4.特种不锈钢叶轮轴，不生锈，不断轴
5.稀土铁硼强磁电机，动力更强劲
6.宽电压设计，电压270V-440V正常使用
7.屏蔽充水电机，潜水深度可达300米，高效节能电机.能效达90%以上
8.采用滑动石墨烯轴承，超长使用寿命
9.采用大推力滑动轴承，电机更静音
10.健康用水
10 Features
1. The pump body adopts a sand resistant structure, and the impeller has good wearresistance
2.Single stage floating impeller for higher efficiency
3.304 stainless steel motor shaft with good corrosion resistance
4.Special stainless steel impeller shaft, non rusting, continuous shaft
5.Rare earth iron boron strong magnetic motor, with stronger power
6.Wide voltage design, voltage 270V-440V for normal use
7.Shielded water filled motor, with a diving depth of up to 300 meters,efficient and energy-saving, with motor energy efficiency of over 90%
8.Adopting sliding graphene bearings for ultra long service life
9.Adopting high thrust sliding bearings, the motor is quieter
10.Healthy Water
20T系列(外置控制器)
20T series (external controller)
|
序号 |
型号 |
功率 Power (KW) |
电流 |
电压 |
出水口径 |
流量m³/h 扬程m |
||
|
18T |
20T |
25T |
||||||
|
1 |
IE-128QJ20-123/7-11 |
11 |
23 |
380 |
3" |
139 |
123 |
104 |
|
2 |
IE-128QJ20-176/10-15 |
15 |
32 |
199 |
176 |
149 |
||
|
3 |
IE-128QJ20-212/12-18.5 |
19 |
38 |
238 |
212 |
179 |
||
|
4 |
IE-128QJ20-265/15-22 |
22 |
47 |
298 |
265 |
223 |
||
|
5 |
IE-128QJ20-300/17-26 |
26 |
53 |
338 |
300 |
253 |
||
|
6 |
IE-128QJ20-335/19-30 |
30 |
59 |
377 |
335 |
283 |
||
|
7 |
IE-128QJ20-406/23-37 |
37 |
70 |
457 |
406 |
343 |
||
128型深并泵直流变频高效节能系列20T系列(外置控制器)
128 type deep parallel pump Dc variable frequency high-eficiency energy-saving series 20T series (external controller)
|
序号 |
型 号 |
功率 |
电流 |
电压 |
出水口径 |
流量m³/h 扬程m |
||
|
28T |
32T |
40T |
||||||
|
1 |
IE-128QJ32-85/4-11 |
11 |
23 |
380 |
3" |
91 |
85 |
70 |
|
2 |
IE-128QJ32-127/6-15 |
15 |
32 |
136 |
127 |
101 |
||
|
3 |
IE-128QJ32-148/7-18.5 |
19 |
38 |
159 |
148 |
118 |
||
|
4 |
IE-128QJ32-170/8-22 |
22 |
47 |
181 |
170 |
134 |
||
|
5 |
IE-128QJ32-191/9-26 |
26 |
53 |
204 |
191 |
151 |
||
|
6 |
IE-128QJ32-233/11-30 |
30 |
59 |
249 |
233 |
185 |
||
|
7 |
IE-128QJ32-276/13-37 |
37 |
70 |
295 |
276 |
218 |
||
|
45T系列(外置控制器) |
流量m³/h 扬程m |
|||||||
|
40T |
45T |
50T |
||||||
|
1 |
IE-128QJ45-67/4-11 |
11 |
23 |
380 |
3" |
73 |
67 |
61 |
|
2 |
IE-128QJ45-101/6-15 |
15 |
32 |
110 |
101 |
91 |
||
|
3 |
IE-128QJ45-117/7-18.5 |
19 |
38 |
128 |
117 |
106 |
||
|
4 |
IE-128QJ45-134/8-22 |
22 |
47 |
147 |
134 |
121 |
||
|
5 |
IE-128QJ45-151/9-26 |
26 |
53 |
165 |
151 |
136 |
||
|
6 |
IE-128QJ45-184/11-30 |
30 |
59 |
202 |
184 |
167 |
||
|
7 |
IE-128QJ45-218/13-37 |
37 |
70 |
239 |
218 |
197 |
||
|
60T系列(外置控制器) |
流量m³/h 扬程m |
|||||||
|
50T |
60T |
70T |
||||||
|
1 |
IE-128QJ60-41/2-11 |
11 |
23 |
380 |
4" |
46 |
41 |
37 |
|
2 |
IE-128QJ60-58/3-15 |
15 |
32 |
64 |
58 |
52 |
||
|
3 |
IE-128QJ60-78/4-18.5 |
19 |
38 |
85 |
78 |
69 |
||
|
4 |
IE-128QJ60-97/5-22 |
22 |
47 |
106 |
97 |
86 |
||
|
5 |
IE-128QJ60-117/6-26 |
26 |
53 |
127 |
117 |
103 |
||
|
6 |
IE-128QJ60-122/7-30 |
30 |
59 |
133 |
122 |
108 |
||
|
7 |
IE-128QJ60-139/8-37 |
37 |
70 |
152 |
139 |
123 |
||
|
80T系列(外置控制器) |
流量m³/h 扬程m |
|||||||
|
70T |
80T |
90T |
||||||
|
1 |
IE-128QJ80-36/2-11 |
11 |
23 |
380 |
4" |
42 |
36 |
31 |
|
2 |
IE-128QJ80-54/3-18.5 |
19 |
38 |
62 |
54 |
47 |
||
|
3 |
IE-128QJ80-71/4-22 |
22 |
47 |
83 |
71 |
63 |
||
|
4 |
IE-128QJ80-89/5-30 |
30 |
59 |
103 |
89 |
78 |
||
|
5 |
IE-128QJ80-107/6-37 |
37 |
70 |
124 |
107 |
94 |
||
145型深并泵直流变频高效节能系列20T系列(外置控制器)
145 type deep parallel pump DC variable frequency high-efficiency energy-saving series 20T series (external controller
|
序号 |
型号 |
功率 |
电流 |
电压 |
出水口径 |
流量(m³/h) 扬程(m) |
||
|
18T |
20T |
22T |
||||||
|
1 |
IE145QJ20-406/23-37 |
37 |
75 |
380 |
3" |
450 |
406 |
365 |
|
2 |
IE145QJ20-476/27-45 |
45 |
90 |
530 |
476 |
430 |
||
|
32T系列(外置控制器) |
流量(m³/h) 扬程(m) |
|||||||
|
30T |
32T |
35T |
||||||
|
1 |
IE145QJ32-255/13-37 |
37 |
75 |
380 |
3" |
270 |
255 |
230 |
|
2 |
IE145QJ32-315/15-45 |
45 |
90 |
338 |
315 |
285 |
||
|
3 |
IE145QJ32-382/19-55 |
55 |
110 |
405 |
382 |
345 |
||
|
4 |
IE145QJ32-425/21-63 |
63 |
125 |
450 |
425 |
385 |
||
|
45T系列(外置控制器) |
流量(m³/h) 扬程(m) |
|||||||
|
40T |
45T |
50T |
||||||
|
1 |
IE145QJ45-218/13-37 |
37 |
75 |
380 |
3" |
240 |
218 |
190 |
|
2 |
IE145QJ45-268/16-45 |
45 |
90 |
295 |
268 |
235 |
||
|
3 |
IE145QJ45-318/19-55 |
55 |
110 |
350 |
318 |
280 |
||
|
4 |
IE145QJ45-352/21-63 |
63 |
125 |
390 |
352 |
310 |
||
|
60T系列(外置控制器) |
流量(m³/h) 扬程(m) |
|||||||
|
50T |
60T |
70T |
||||||
|
1 |
IE145QJ60-139/8-37 |
37 |
75 |
380 |
4" |
160 |
139 |
110 |
|
2 |
IE145QJ60-173/10-45 |
45 |
90 |
200 |
173 |
140 |
||
|
3 |
IE145QJ60-208/12-55 |
55 |
110 |
240 |
208 |
172 |
||
|
4 |
IE145QJ60-243/14-63 |
63 |
125 |
280 |
243 |
205 |
||
|
80T系列(外置控制器) |
流量(m³/h) 扬程(m) |
|||||||
|
70T |
80T |
90T |
||||||
|
1 |
IE145QJ80-107/6-37 |
37 |
75 |
380 |
4" |
120 |
107 |
90 |
|
2 |
IE145QJ80-125/7-45 |
45 |
90 |
140 |
125 |
105 |
||
|
3 |
IE145QJ80-160/9-55 |
55 |
110 |
172 |
160 |
135 |
||
|
4 |
IE145QJ80-178/10-63 |
63 |
125 |
205 |
178 |
150 |
||
|
100T系列(外置控制器) |
流量(m³/h) 扬程(m) |
|||||||
|
90T |
100T |
110T |
||||||
|
1 |
IE145QJ100-80/3-37 |
37 |
75 |
380 |
4" |
85 |
80 |
70 |
|
2 |
IE145QJ100-107/4-45 |
45 |
90 |
110 |
107 |
95 |
||
|
3 |
IE145QJ100-133/5-55 |
55 |
110 |
140 |
133 |
115 |
||
