XY100QJD系列特点:
XY1000JD series features:
1、陶瓷抗沙结构，耐磨损，使用寿命长;
2、工程塑料叶轮，悬浮设计;
3、分体包装，电机可以通配同功率的泵，减少库存:4、油浸式电机，可潜水深度120米:
5、水泵使用环境:常温清水;
6、全扬程，全电压，扬程高，适合家用，工业用
1.Ceramic sand resistant structure.wear-resistant, and long service llfe2,Engineering plastic impeller,suspension design;
3. Split packaging, the motor can be equipped with pumps of the same power.reducing inventory;
4.Oil immersed motor, capable of diving to a depth of 120 meters;5,Water pump usage environment; room temperature clean water;6. Full head, full voltage. bigh head. suitable for household and industrial use;

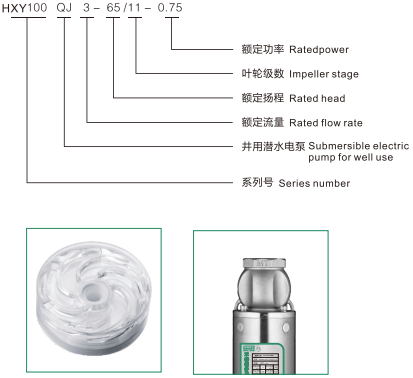

型号说明 Model Description

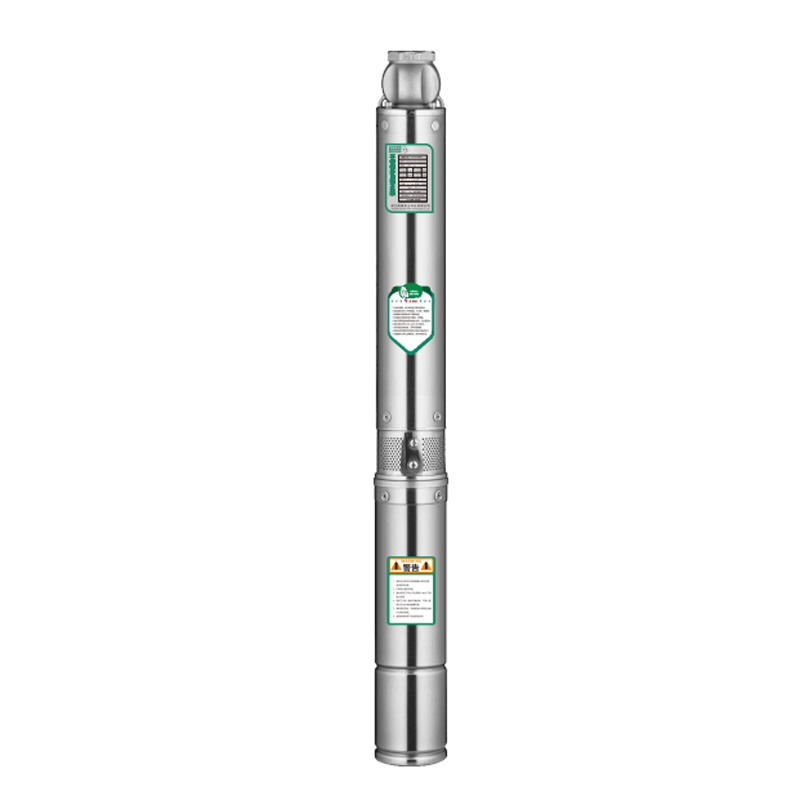

HXY100型系列陶瓷抗沙泵配油浸式电机
HXY100 series ceramic anti-sand pump with oil-immersed motor
|
序号 |
HXY100 -2T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJD2-47/8-0.37 |
2 |
47 |
5.5 |
56 |
1.0" |
96 |
|
2 |
HXY100QJD2-57/10-0.55D |
2 |
57 |
5.5 |
70 |
1.0" |
96 |
|
3 |
HXY100QJD2-70/12-0.65 |
2 |
70 |
5.5 |
85 |
1.0" |
96 |
|
4 |
HXY100QJD2-82/14-0.75D |
2 |
82 |
5.5 |
98 |
1.0" |
96 |
|
5 |
HXY100QJD2-98/17-1.1X |
2 |
98 |
5.5 |
119 |
1.0" |
96 |
|
6 |
HXY100QJ(D)2-128/22-1.1D |
2 |
128 |
5.5 |
154 |
1.0" |
96 |
|
7 |
HXY100QJ(D)2-162/28-1.5D |
2 |
162 |
5.5 |
196 |
1.0" |
96 |
|
8 |
HXY100QJ(D)2-195/33-1.8D |
2 |
195 |
5.5 |
230 |
1.0" |
96 |
|
9 |
HXY100QJ(D)2-235/39-2.2D |
2 |
235 |
5.5 |
300 |
1.0" |
96 |
|
10 |
HXY100QJ(D)2-260/45-3.0 |
2 |
260 |
5.5 |
310 |
1.0" |
96 |
|
序号 |
HXY100 -3T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)3-45/7-0.55 |
3 |
45 |
7 |
52 |
1.0" |
96 |
|
2 |
HXY100QJ(D)3-60/9-0.75 |
3 |
60 |
7 |
68 |
1.0" |
96 |
|
3 |
HXY100QJ(D)3-70/11-0.75D |
3 |
70 |
7 |
82 |
1.0" |
96 |
|
4 |
HXY100QJ(D)3-82/13-1.1X |
3 |
82 |
7 |
98 |
1.0" |
96 |
|
5 |
HXY100QJ(D)3-102/16-1.1D |
3 |
102 |
7 |
120 |
1.0" |
96 |
|
6 |
HXY100QJ(D)3-125/20-1.5D |
3 |
125 |
7 |
150 |
1.0" |
96 |
|
7 |
HXY100QJ(D)3-145/23-1.8D |
3 |
145 |
7 |
172 |
1.0" |
96 |
|
8 |
HXY100QJ(D)3-160/26-2.2 |
3 |
160 |
7 |
200 |
1.0" |
96 |
|
9 |
HXY100QJ3-230/38-3.0 |
3 |
230 |
7 |
260 |
1.0" |
96 |
|
10 |
HXY100QJ3-260/48-4.0 |
3 |
260 |
7 |
310 |
1.0" |
96 |
|
11 |
HXY100QJ3-360/62-5.5 |
3 |
360 |
7 |
420 |
1.0" |
96 |
|
12 |
HXY100QJ3-440/78-7.5 |
3 |
440 |
7 |
520 |
1.0" |
96 |
|
序号 |
HXY100 -5T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)5-60/10-1.1D |
5 |
60 |
10 |
73 |
1.5" |
96 |
|
2 |
HXY100QJ(D)5-79/13-1.5D |
5 |
79 |
10 |
93 |
1.5" |
96 |
|
3 |
HXY100QJ(D)5-101/16-2.2 |
5 |
101 |
10 |
117 |
1.5" |
96 |
|
4 |
HXY100QJ(D)5-128/22-3.0 |
5 |
128 |
10 |
158 |
1.5" |
96 |
|
5 |
HXY100QJ5-164/28-4.0 |
5 |
164 |
10 |
198 |
1.5" |
96 |
|
6 |
HXY100QJ5-228/37-5.5 |
5 |
228 |
10 |
266 |
1.5" |
96 |
|
7 |
HXY100QJ5-277/45-7.5 |
5 |
277 |
10 |
324 |
1.5" |
96 |
|
序号 |
HXY100 -8T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)8-36/8-1.1D |
8 |
36 |
17 |
48 |
2" |
96 |
|
2 |
HXY100QJ(D)8-38/9-1.5D |
8 |
38 |
17 |
54 |
2" |
96 |
|
3 |
HXY100QJ(D)8-46/11-2.2 |
8 |
46 |
17 |
66 |
2" |
96 |
|
4 |
HXY100QJ(D)8-85/17-3.0 |
8 |
85 |
17 |
114 |
2" |
96 |
|
5 |
HXY100QJ8-103/23-4.0 |
8 |
103 |
17 |
140 |
2" |
96 |
|
6 |
HXY100QJ8-140/31-5.5 |
8 |
140 |
17 |
188 |
2" |
96 |
|
7 |
HXY100QJ8-171/38-7.5 |
8 |
171 |
17 |
230 |
2" |
96 |
|
序号 |
HXY100 -10T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)10-33/8-1.1 |
10 |
33 |
20 |
48 |
2" |
96 |
|
2 |
HXY100QJ(D)10-41/10-1.5 |
10 |
41 |
20 |
52 |
2" |
96 |
|
3 |
HXY100QJ(D)10-50/12-2.2 |
10 |
50 |
20 |
70 |
2" |
96 |
|
4 |
HXY100QJ(D)10-66/16-3 |
10 |
65 |
20 |
100 |
2" |
96 |
|
5 |
HXY100QJ10-91/22-4 |
10 |
91 |
20 |
135 |
2" |
96 |
|
6 |
HXY100QJ10-124/30-5.5 |
10 |
124 |
20 |
180 |
2" |
96 |
|
7 |
HXY100QJ10-152/36-7.5 |
10 |
152 |
20 |
210 |
2" |
96 |
|
序号 |
HXY100 -12T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)12-27/7-1.1D |
12 |
27 |
20 |
37 |
2" |
96 |
|
2 |
HXY100QJ(D)12-34/9-1.5D |
12 |
34 |
20 |
47 |
2" |
96 |
|
3 |
HXY100QJ(D)12-41/11-2.2 |
12 |
41 |
20 |
58 |
2" |
96 |
|
4 |
HXY100QJ(D)12-53/17-3.0 |
12 |
53 |
20 |
93 |
2" |
96 |
|
5 |
HXY100QJ12-68/22-4.0 |
12 |
68 |
20 |
120 |
2" |
96 |
|
6 |
HXY100QJ12-85/28-5.5 |
12 |
85 |
20 |
145 |
2" |
96 |
|
7 |
HXY100QJ12-105/34-7.5 |
12 |
105 |
20 |
176 |
2" |
96 |
|
序号 |
HXY100 -16T系列 Model |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
HXY100QJ(D)16-27/10-2.2 |
16 |
27 |
25 |
51 |
2" |
96 |
|
2 |
HXY100QJ(D)16-38/13-3.0 |
16 |
38 |
25 |
66 |
2" |
96 |
|
3 |
HXY100QJ16-52/17-4.0 |
16 |
52 |
25 |
88 |
2" |
96 |
|
4 |
HXY100QJ16-67/23-5.5 |
16 |
67 |
25 |
118 |
2" |
96 |
|
5 |
HXY100QJ16-91/30-7.5 |
16 |
91 |
25 |
149 |
2" |
96 |
