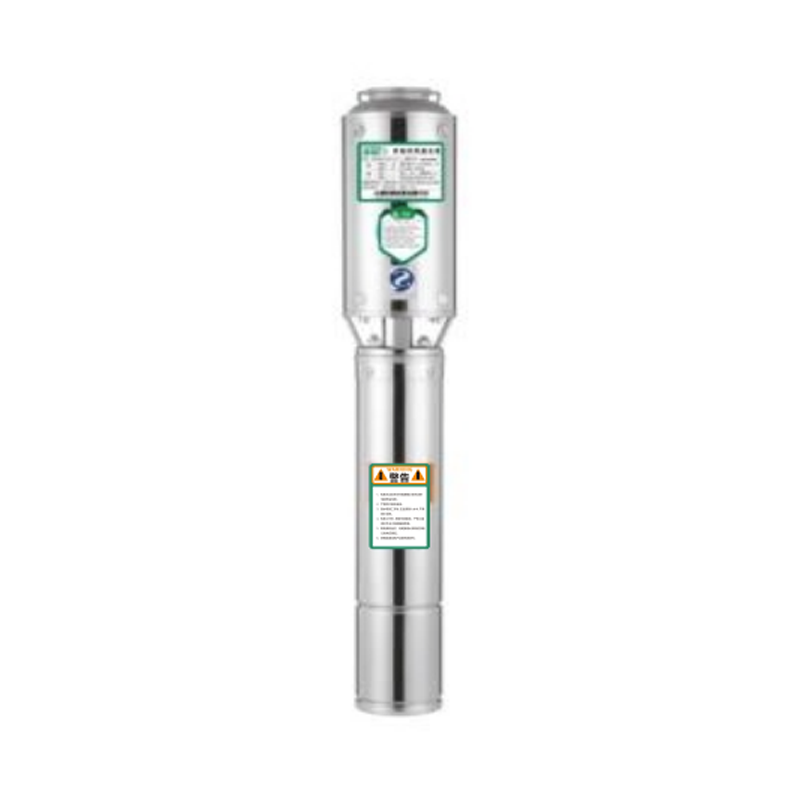

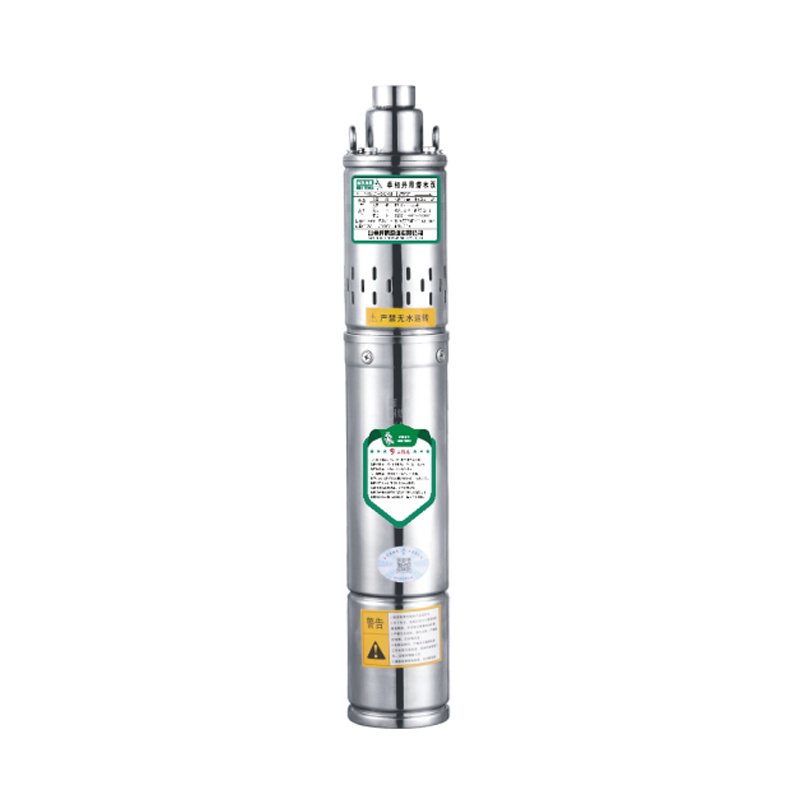

QGD系列特点:
QGD series features:
QGD、QG型潜水螺杆泵(以下简称电泵)，由泵组、密封、电动机三部分组成泵组位于电泵的上部，其主要部件为螺杆和橡胶定子，电动机位于电泵的下部为单相或三相异步电动机，泵组与电动机之间采用机械密封，各固定止口密封处采用“O型耐油构橡胶密封圈作静密封。该系列电泵由于扬程无下止点限制，只要在最高扬程范围之内均可工作，且扬程高、效率高、高校区宽。因此广泛适用于远距离输水灈溉，养殖业高效增氧、深井提水、城乡自来水增压、矿井给排水及食品化工行业输送糖浆和无腐蚀性化学液体。
本厂还生产双电容启动电机螺杆泵，其特点是杆过紧的也能正常工作。
QGD and QG submersible screw pumps (hereinafter referred to as electric pumps) are composedof three parts: pump unit. seal, and motor, The pump unit is located in the upper part of the electricpump, and its main components are the screw and rubber stator. The motor is located in the lowerpart of the alectric pump, which is a single-phase or three-phase asynchronous motor. Mechanicaseals are used between the pump unit and the electric motor,, and "o" type oil resistant rubbersealing rings are used as static seals at each fixed end seal, This series ofelectric pumps canoperate within the maximum head range due to the no bottom dead center limit on the head, andhave high head, high efficiency, and wide university area. Therefore, itis widely applicable forlong-distance water irrigation, efficient oxygenation in the aguaculture industry, deep well waterextraction, urban and rural tap water pressurization, mine water supply and drainage, and thetransportation ofsyrup and non corrosive chemical liguids in the food and chemical industry
Our factory also produces double capacltor starting motor screw pumps, which are characterizedby the ability to work normally even if the screw is too tight.

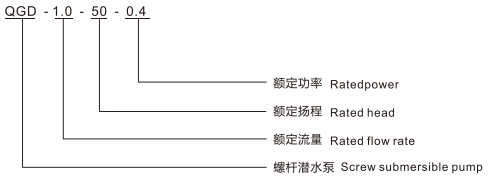

型号说明 Model Description
油浸螺杆泵系列220V
Oil immersed screw pump series 220V
|
序号 |
型号 |
额定流量 |
额定扬程 |
最大流量 |
最高扬程 |
出水口径 |
外径 |
|
1 |
QGD0.6-50-0.28 |
0.6 |
50 |
2 |
80 |
1.0" |
88 |
|
2 |
QGD1.0-50-0.4 |
1 |
50 |
2 |
100 |
96 |
|
|
3 |
QGD1.8-50-0.6 |
1.8 |
50 |
3 |
110 |
96 |
|
|
4 |
QGD1.0-100-0.95 |
1 |
100 |
2 |
180 |
96 |
|
|
5 |
QGD1.0-150-1.5 |
1 |
150 |
2 |
245 |
96 |
|
|
6 |
QGD1.0-200-1.8 |
1 |
200 |
2 |
300 |
96 |
Y135QJ系列特点及用途:
Y1350Jseries features and applications:
1、流量大、全扬程、全电压。适合家用、民用(高性价比);
2、油浸式电机，可潜水深度120米;接插式电缆，容易更换;
3、水泵使用环境:常温清水;4、电容内置，安装方便;
5、马达自动保护。
1. Large flow rate, full head, full voltage, Suitable for household and civilian use (high cost-effectiveness);
2. Oil immersed motor, capable of diving to a depth of 120 meters, Plug in cable, easy to replace;
3. Water pump usage environment: room temperature clean water;
4.Built in capacitor, easy to install;
5. Motor automatic protection.

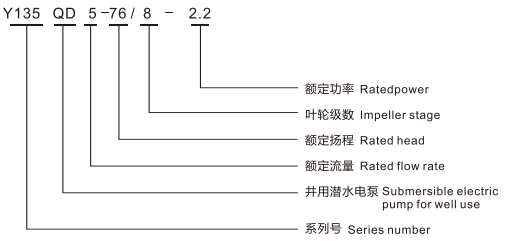

型号说明 Model Description
Y100-135QD大头泵产品规格表
Y100-135QD large head pump
|
序号 |
型号 |
额定流量 |
最大流量 |
额定扬程 |
最高扬程 |
出水口径 |
|
1 |
135QD5-35/4-1.5 |
5 |
10 |
35 |
52 |
2 |
|
2 |
135QD5-52/6-1.8 |
5 |
10 |
52 |
76 |
2 |
|
3 |
135QD5-76/8-2.2 |
5 |
10 |
76 |
106 |
2 |
|
4 |
135QD10-25/3-1.5 |
10 |
20 |
25 |
42 |
2 |
|
5 |
135QD10-30/4-1.8 |
10 |
20 |
30 |
55 |
2 |
|
6 |
135QD10-45/5-2.2 |
10 |
20 |
45 |
71 |
2 |
|
7 |
135QD15-15/2-1.5 |
15 |
25 |
15 |
26 |
2 |
|
8 |
135QD15-24/3-1.8 |
15 |
25 |
24 |
38 |
2 |
|
9 |
135QD15-31/4-2.2 |
15 |
25 |
31 |
50 |
2 |
|
10 |
135QD20-15/2-1.5 |
20 |
30 |
15 |
25 |
2.5 |
|
11 |
135QD20-22/3-1.8 |
20 |
30 |
22 |
37 |
2.5 |
|
12 |
135QD20-29/4-2.2 |
20 |
30 |
29 |
50 |
2.5 |
|
13 |
135QD20-36/5-3 |
20 |
30 |
36 |
63 |
2.5 |
