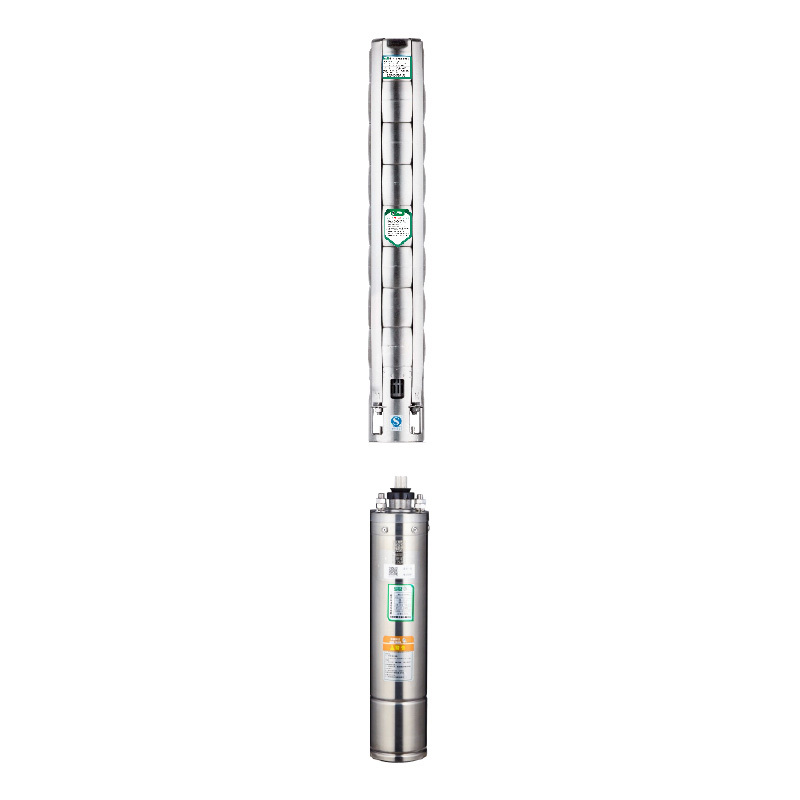

6SP系列特点
1、叶轮和蜗壳全不锈钢304材质，精密成型，效率高(比普通的高20%);2、流量大，全扬程，全电压，适合家用、农用;
3、充油式电机，可潜水深度120米;
4、水泵使用环境;常温清水;
5、不锈钢防腐结构;
6、可重绕油浸绕组。

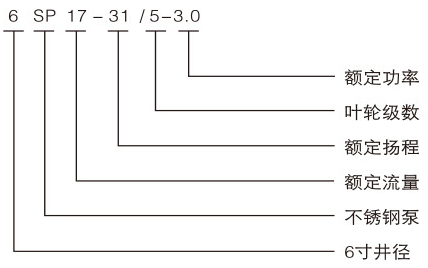

6SP系列产品型号示例:
|
6SP-17T系列 |
|||||||||||
|
序号
|
型号
|
功率
|
出水口径
|
外径
|
流量m³/h 扬程m |
||||||
|
KW |
HP |
0T |
10T |
15T |
17T |
20T |
25T |
||||
|
1 |
5-6SP17-4-2.2 |
2.2 |
3 |
2.5" |
145 |
44 |
39 |
35 |
33 |
28 |
17 |
|
2 |
5-6SP17-5-3.0 |
3 |
4 |
2.5" |
145 |
55 |
49 |
44 |
41 |
35 |
21 |
|
3 |
5-6SP17-7-4.0 |
4 |
5.5 |
2.5" |
145 |
77 |
68 |
61 |
58 |
49 |
30 |
|
4 |
6SP17-11-5.5 |
5.5 |
7.5 |
2.5" |
145 |
121 |
107 |
96 |
91 |
77 |
47 |
|
5 |
6SP17-14-7.5 |
7.5 |
10 |
2.5" |
145 |
154 |
137 |
123 |
116 |
98 |
60 |
|
6 |
6SP17-17-9.2 |
9.2 |
12.5 |
2.5" |
145 |
187 |
166 |
149 |
140 |
119 |
72 |
|
7 |
6SP17-20-11 |
11 |
15 |
2.5" |
145 |
220 |
195 |
175 |
165 |
140 |
85 |
|
8 |
6SP17-24-13 |
13 |
17.5 |
2.5" |
145 |
264 |
234 |
210 |
198 |
168 |
102 |
|
9 |
6SP17-27-15 |
15 |
20 |
2.5" |
145 |
297 |
263 |
236 |
223 |
189 |
115 |
|
10 |
6SP17-30-18.5 |
18.5 |
25 |
2.5" |
145 |
330 |
292 |
262 |
247 |
210 |
127 |
|
11 |
6SP17-36-22 |
22 |
30 |
2.5" |
145 |
396 |
351 |
315 |
297 |
252 |
153 |
|
12 |
6SP17-43-26 |
26 |
35 |
2.5" |
145 |
473 |
419 |
376 |
355 |
301 |
183 |
|
6SP-30T系列 |
|||||||||||
|
序号 |
型 号 |
功 率 |
出水口径 |
外径(mm) |
流量m³/h 扬程 m |
||||||
|
KW |
HP |
0T |
20T |
25T |
30T |
35T |
40T |
||||
|
1 |
5-6SP30-3-3.0 |
3 |
4 |
3" |
145 |
40 |
32 |
28 |
23 |
18 |
11 |
|
2 |
5-6SP30-4-4.0 |
4 |
5.5 |
3" |
145 |
53 |
42 |
38 |
31 |
24 |
14 |
|
3 |
6SP30-5-5.5 |
5.5 |
7.5 |
3" |
145 |
66 |
53 |
47 |
39 |
30 |
18 |
|
4 |
6SP30-7-7.5 |
7.5 |
10 |
3" |
145 |
92 |
74 |
66 |
55 |
42 |
25 |
|
5 |
6SP30-9-9.2 |
9.2 |
12.5 |
3" |
145 |
118 |
95 |
85 |
71 |
54 |
32 |
|
6 |
6SP30-12-11 |
11 |
15 |
3" |
145 |
157 |
126 |
113 |
94 |
72 |
42 |
|
7 |
6SP30-14-13 |
13 |
17.5 |
3" |
145 |
184 |
148 |
132 |
110 |
84 |
50 |
|
8 |
6SP30-16-15 |
15 |
20 |
3" |
145 |
210 |
169 |
151 |
126 |
96 |
57 |
|
9 |
6SP30-19-18.5 |
18.5 |
25 |
3" |
145 |
249 |
201 |
179 |
150 |
114 |
68 |
|
10 |
6SP30-23-22 |
22 |
30 |
3" |
145 |
302 |
243 |
217 |
181 |
138 |
82 |
|
11 |
6SP30-28-26 |
26 |
35 |
3" |
145 |
367 |
296 |
264 |
221 |
168 |
100 |
|
6SP-46T系列 |
|||||||||||
|
序号 |
型号 |
功率 |
出水口径 |
外径(mm) |
流量m³/h 扬程 m |
||||||
|
KW |
HP |
0T |
35T |
40T |
46T |
50T |
55T |
||||
|
1 |
5-6SP46-2-3 |
3 |
4 |
3" |
145 |
27 |
20 |
19 |
18 |
16 |
14 |
|
2 |
5-6SP46-3-4 |
4 |
5.5 |
3" |
145 |
40 |
30 |
29 |
26 |
24 |
21 |
|
3 |
6SP46-4-5.5 |
5.5 |
7.5 |
3" |
145 |
53 |
40 |
39 |
35 |
32 |
28 |
|
4 |
6SP46-5-7.5 |
7.5 |
10 |
3" |
145 |
66 |
50 |
48 |
44 |
40 |
35 |
|
5 |
6SP46-6-9.2 |
9.2 |
12.5 |
3" |
145 |
79 |
60 |
58 |
53 |
48 |
42 |
|
6 |
6SP46-7-11 |
11 |
15 |
3" |
145 |
92 |
70 |
67 |
62 |
56 |
49 |
|
7 |
6SP46-8-13 |
13 |
17.5 |
3" |
145 |
106 |
80 |
77 |
70 |
64 |
56 |
|
8 |
6SP46-10-15 |
15 |
20 |
3" |
145 |
132 |
100 |
96 |
88 |
80 |
70 |
|
9 |
6SP46-12-18.5 |
18.5 |
25 |
3" |
145 |
158 |
120 |
115 |
106 |
96 |
84 |
|
10 |
6SP46-14-22 |
22 |
30 |
3" |
145 |
185 |
140 |
134 |
123 |
112 |
98 |
|
11 |
6SP46-16-26 |
26 |
35 |
3" |
145 |
211 |
160 |
154 |
141 |
128 |
112 |
|
6SP-60T系列 |
||||||||||||
|
序号 |
型 号 |
功 率 |
出水口径 |
外径(mm) |
流量m³/h 扬程 m |
|||||||
|
KW |
HP |
0T |
40T |
45T |
50T |
55T |
60T |
65T |
||||
|
1 |
6SP60-4-7.5 |
7.5 |
10 |
4" |
145 |
56 |
40 |
39 |
36 |
34 |
31 |
28 |
|
2 |
6SP60-5-9.2 |
9.2 |
12.5 |
4" |
145 |
70 |
51 |
48 |
45 |
42 |
39 |
34 |
|
3 |
6SP60-6-11 |
11 |
15 |
4" |
145 |
84 |
61 |
57 |
54 |
50 |
46 |
41 |
|
4 |
6SP60-8-15 |
15 |
20 |
4" |
145 |
112 |
82 |
77 |
72 |
67 |
62 |
55 |
|
5 |
6SP60-9-19 |
18.5 |
25 |
4" |
145 |
126 |
93 |
87 |
81 |
75 |
70 |
62 |
|
6 |
6SP60-10-19 |
18.5 |
25 |
4" |
145 |
140 |
103 |
96 |
90 |
84 |
78 |
69 |
|
7 |
6SP60-11-22 |
22 |
30 |
4" |
145 |
154 |
116 |
108 |
100 |
93 |
86 |
76 |
|
8 |
6SP60-12-22 |
22 |
30 |
4" |
145 |
168 |
124 |
112 |
110 |
102 |
94 |
83 |
|
9 |
6SP60-13-26 |
26 |
35 |
4" |
145 |
182 |
136 |
127 |
118 |
110 |
102 |
90 |
|
10 |
6SP60-14-26 |
26 |
35 |
4" |
145 |
196 |
146 |
137 |
128 |
119 |
110 |
97 |
